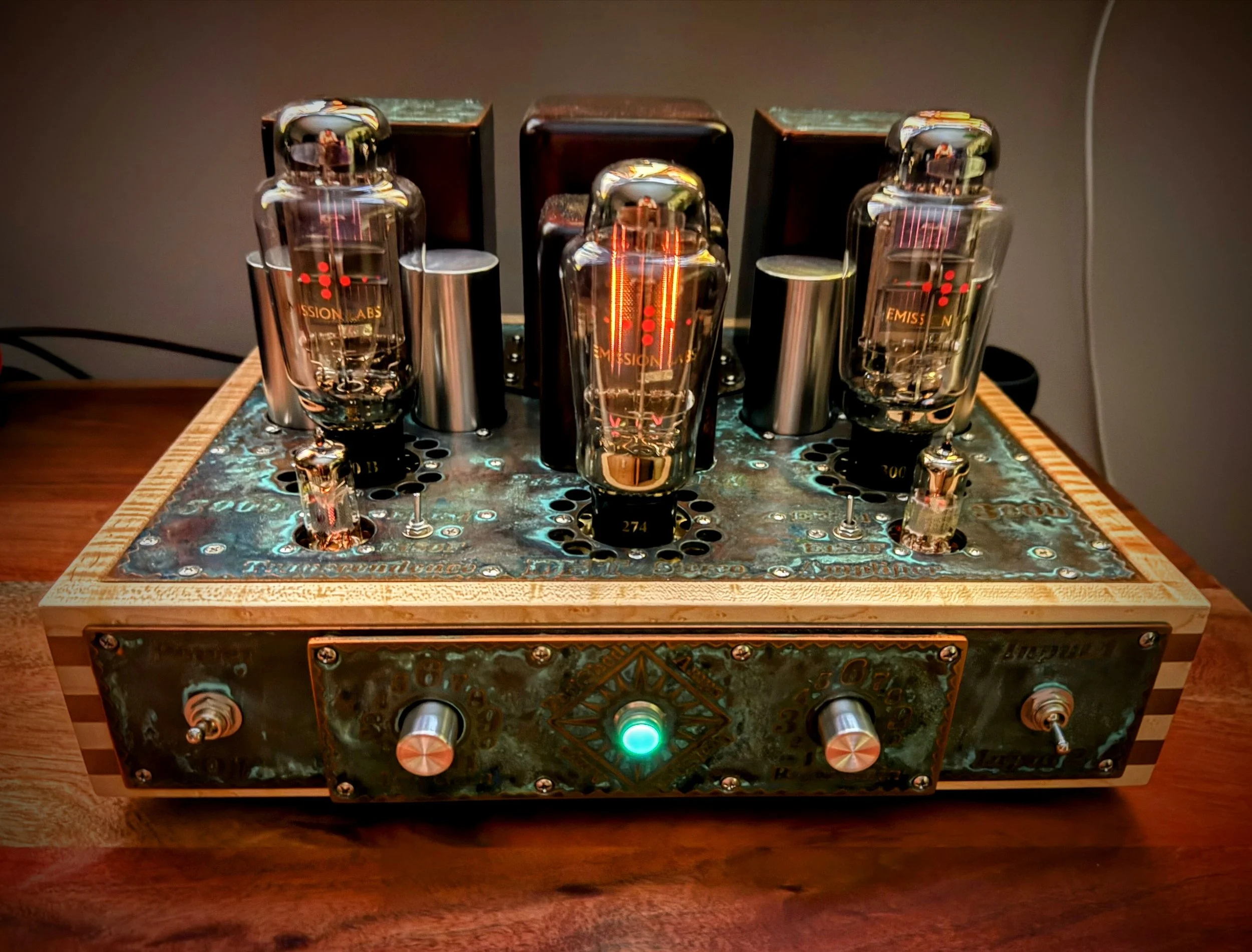

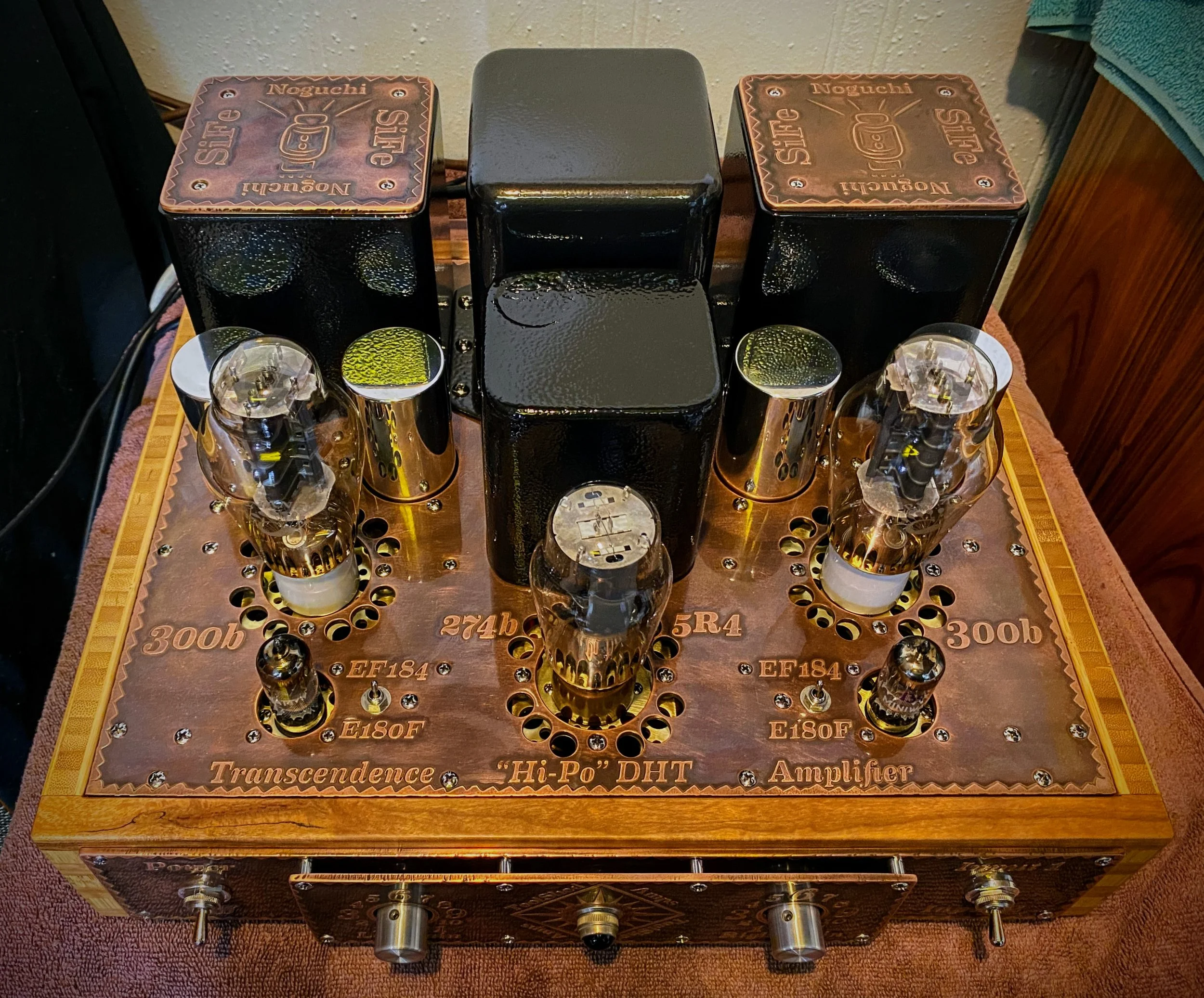

transcendence dht stereo amplifier

all new gen4 high impedance, input transformer-coupled, driver stage as standard.

vintage, potted power transformer and choke as standard.

noguchi sife-core, ofc copper output transformers as standard.

BASE PRICE: $7K5

NOTE: The above listed standard refinements have been reflected in the new “Base Price”. They include the following: Vintage Potted Power Transformer and Choke (available in either Black or Silver Hammertone Baked Enamel), Input Transformers, Water-Jet cut Input Transformer Mounting Plates, Additional Pair of EF184 Driver Tubes added to all of the tube packages, Driver Tube Selection Switches, New Driver Tube Socket Ventilation/Mounting Plates, and finally the difference in cost of the new “Standard” Output Transformers.

output tube choices: please choose

300b = 8W+8W, RCA-50 = 3.4w+3.4W, px25 = 6w+6W, ed = 4w+4w (ad1)

Auto-Bias, No Adjustment Required……… even when rolling tubes.

17Hz-35KHz +/-3db @ 0.93%THD (Measured @ 1W/1KHz , Exclusively 2nd Order. Less than 5% @ full power) to 8 or 16 Ohms.

Input Impedance: 100K

Input Sensitivity: 2.46v To Full Output (W/Standard Gen4 E180F/EF184 Driver Stage. Pre-Amp/Line-Stage Optional, Sources May be Directly Connected)

S/N Ratio: -87db Below Full Output (Exceptionally Quiet Background Noise)

Inputs: Two (2) Switchable on RCA's

Gain Adjustment: Dual-Mono Input Gain on Face-Plate (May be used as a "Volume" controls on Directly Connected Sources when no Pre-Amplifier is used.)

Output: 5-Way Binding Posts (Accepts Spade, Banana and Bare Wire Connections.)

Tube Complement: One (1) 5R4GY/274b Rectifier, Two (2) E180F/6688 or EF184 Driver Tubes (Standard) and Two (2) Power Tubes.

tubes not included in the base price, see below

READ THE 300b REVIEW

tube packages

Basic 300b Tube Package: “Starter” package consisting of (1) Psvane 274b Rectifier, (4) One pair Pre-Selected Vintage E180F/6688 Driver Tubes, one pair EF184 Driver Tubes and (2) One pair Psvane HiFi Series 300b Power tubes. 100hr. “Burn-in” with the amplifier included. ADD $500.00 Warranty 30 Days

American Icon 300b Tube Package: (1) 1950’s/1960’s N.O.S. American (G.E./KenRad/RCA/Sylvania) 5R4GY Rectifier, (4) One pair, Play-Graded, Vintage E180F/6688 Driver Tubes, one pair EF184 Driver Tubes and a Matched Pair of the most Iconic American Power Tube….. the Western Electric 300b, WITH 5yr. Warranty. 100hr. “Burn-in” with the amplifier included. ADD $1650.00 Warranty on Balance of Tubes 90 Days

RCA-50 grid choke selection: Silk (SACThailand) pr. ADD $675.00, Intact Audio (EMIA) Hi-Nickel pr. ADD $950.00, OR WHILE AVAILABLE (Only 4 pair left), Magnequest NiCo BCP-16 pr. ADD $1,250.00 NOTE: A pair MUST be selected, the RCA-50 version cannot be built without grid-chokes.

RCA-50 tube package: (1) Psvane 274b Rectifier, (4) One pair Pre-Selected Vintage E180F/6688 Driver Tubes, one pair EF184 Driver Tubes and (2) One pair Psvane Legend Series WR50 Power tubes. 100hr. “Burn-in” with the amplifier included. ADD $850.00 Warranty 30 Days

NOTE: As an upgrade, please contact George Lenz at tubesUSA for the unrivaled Emission Labs Mesh-Plate 274b Rectifier and a pair of Emission Labs “50’s”. OR, contact Thomas Mayer at Elrog GmbH to purchase the ER274b Thoriated-Tungsten Rectifier and a pair of ER50 Thoriated Tungsten Power tubes.

PX25 tube package: (1) Psvane 274b Rectifier, (4) One pair Pre-Selected Vintage E180F/6688 Driver Tubes, one pair EF184 Driver Tubes and (2) One pair Stradi PX25 Power tubes, WITH 1yr. Warranty. 100hr. “Burn-in” with the amplifier included. ADD $1050.00 Warranty on Balance of Tubes 90 Days

NOTE: As an upgrade, please contact George Lenz at tubesUSA for the unrivaled Emission Labs Mesh-Plate 274b Rectifier and a pair of Emission Labs “PX25’s”.

ED tube/socket/s and Rectifier package: (1) Siemens Z2C “Post” Rectifier w/Machined Teflon “Post” 7-Pin Socket, (4) One pair Pre-Selected Vintage E180F/6688 Driver Tubes, one pair EF184 Driver Tubes and (2) One Pair Stradi ED Power tubes w/Pair Machined Teflon “Post” 7-Pin Sockets, WITH 1yr. Warranty. 100hr. “Burn-in” with the amplifier included. ADD $3000.00 Warranty on Balance of Tubes 90 Days

other upgrades

note: as of 11/1/2023 the cost of Finemet nano-crystalline core output transformers will undergo a 21% increase. this change is reflected below.

Hitachi Metals FineMet Nano-Crystalline Core Output Transformer Upgrade: Considered by Most to be the Finest Output Transformers Currently Available. ADD $2250.00

Hitachi Metals Amorphous Core Output Transformer Upgrade: Wound with Ono-Crystal OFC Copper. ADD $1550.00

NOTE: Other Output Transformers are Occasionally Available, Please Ask. Example: Now Available (1st Come-1st Served) One Pair N.O.S. James JS-6123HS (Better than Most Tamura, ADD $1500.00) SOLD, Two Pair One Pair Magnequest ($$ CALL $$).

Stepped Attenuator Upgrade: Carbon “Sweepers” as Standard (The Same Ones Used by a VERY Highly Regarded Japanese Mfg….. (Hint: Think Green Chassis). Choice of Khozmo or Goldpoint. ADD $250.00

NOTE: If the intent is to run “Source-Direct” and these are used primarily as volume controls, stepped attenuators are not recommended. In our experience, even with 48 “steps” we always seem to want a volume level “between” the steps………. go figure. ;)
